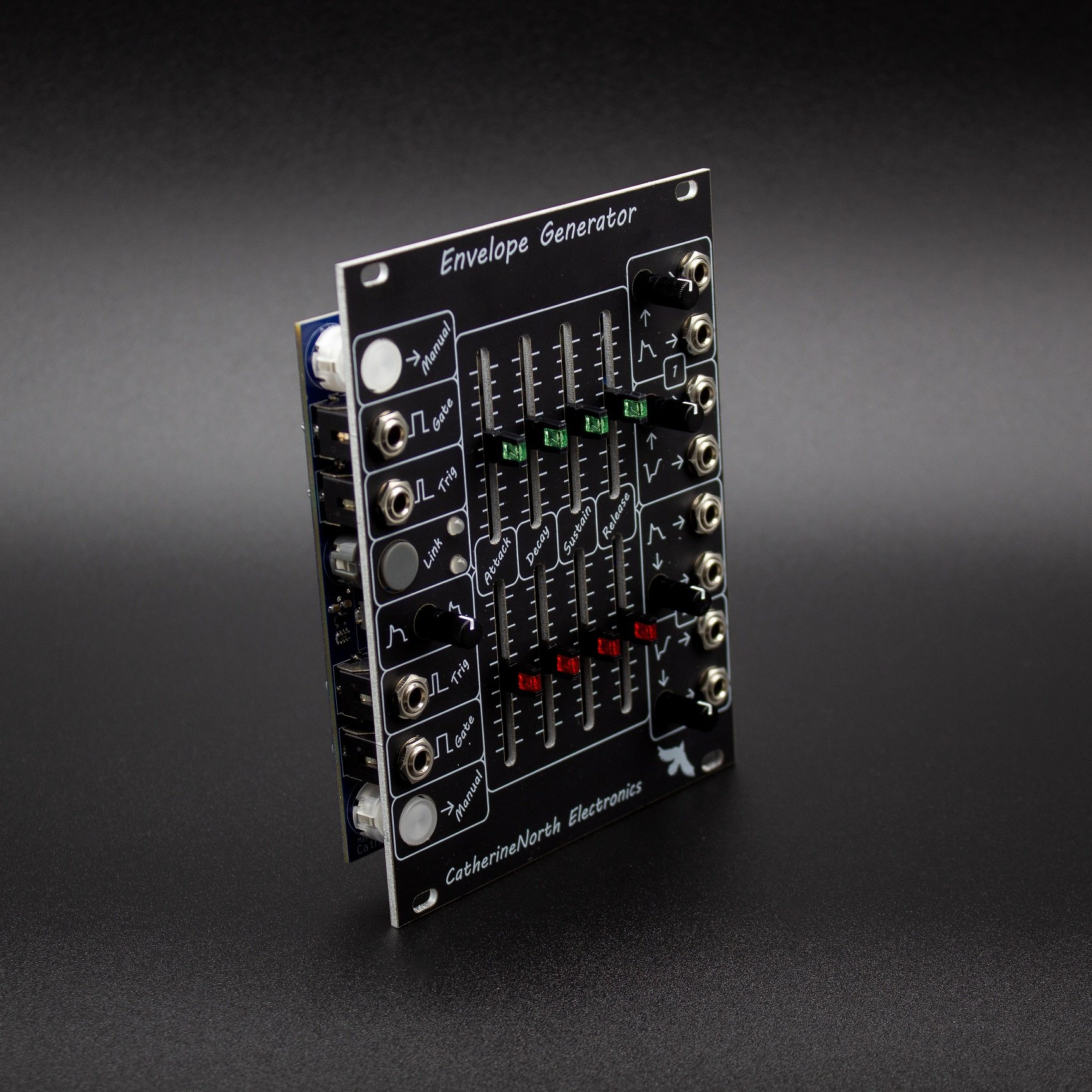

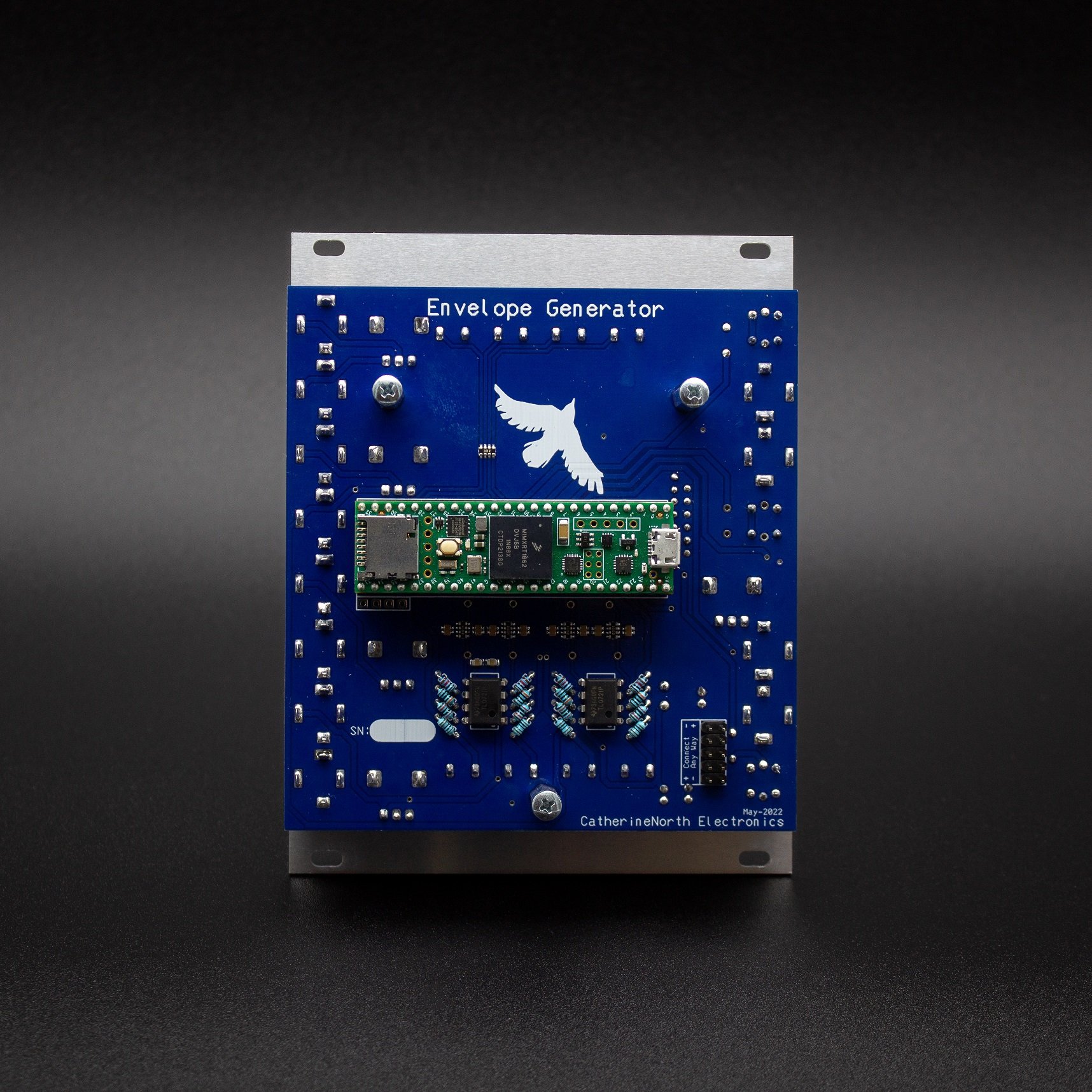

Envelope Generator
Basic Features
Two ADSR Envelope Generators.
Gate, Trigger, and Manual inputs for each.
4 Second Attack
4 Second Delay
Infinite Gate Sustain
6 Second Release.0-to-10v and Inverted 10-to-0v outputs, with Direct and Variable output for each.
ADSR LED’s indicate current Envelope state with brightness indicating actual envelope output level.
Link Mode allows each envelope to self-trigger, trigger at the end of the other envelope, share Trigger, Gate and Manual signals.
Slew Control adjusts the waveforms from Linear towards a Log and Anti-Log shape.
